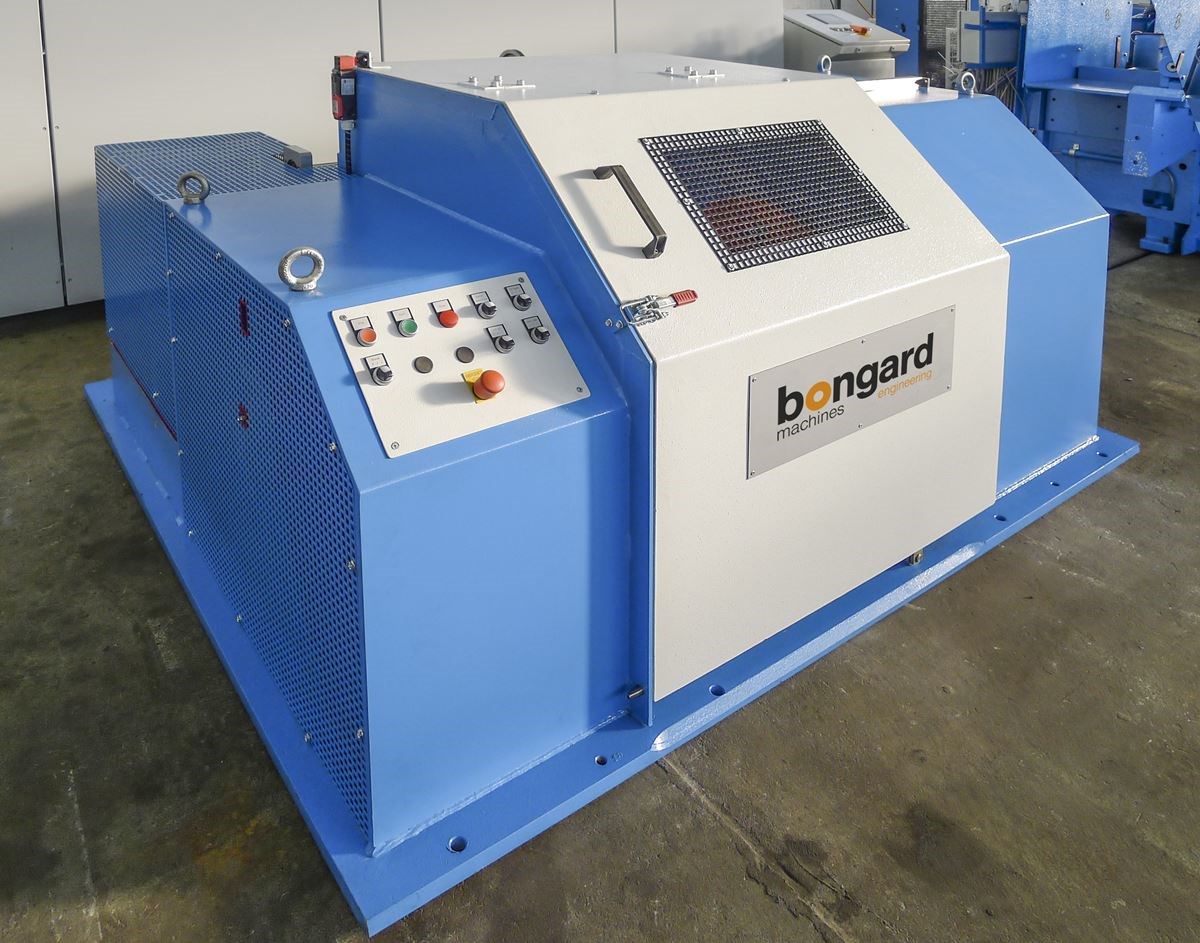

SC-S 400-630

technical details

• type of spooler: spooler
• wire Ø min: 1,00 mm
• wire Ø max: 5,00 mm
• strip, profile, square: no
• wire tensile strength: 400 - 1200 N/mm²
• speed: 25 m/s
• spool flange Ø: 400 / 560 / 630 mm
• layering device: with / without servo drive, roll ring drive
• mode of control: dancer or pull
